Drying Oven F-DRYO105
Home Oven Drying Oven Drying Oven F-DRYO105
Drying Oven F-DRYO105

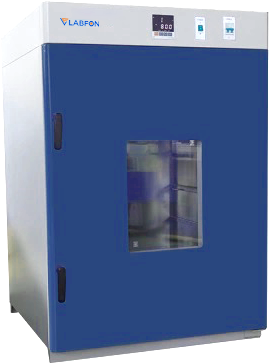

Drying Oven F-DRYO105 is a fully automated safe, easy to use drying oven having a chamber volume of 640 liters built to execute drying process. It is controlled by a microprocessor digital display system to control the running parameters such as temperature and time. It is provided with an automatic alarm where the unit sounds a buzzer when the set time period is over and the heaters are switched off automatically. This alerts the user that the operation is done successfully. A door with double layered tempered glass is one of its unique features that makes viewing of the samples easier and also prevents heat loss.
Volume | 640 L |
Temperature Range | 50 ℃ to 300 ℃ |
Temperature Resolution | 0.1 ℃ |
Temperature Fluctuation | ± 1 ℃ |
Timer | 0 to 999 min |
Dimension (W× D ×H) | 940×1090×1380 mm |
Packaging Dimension | 1000×1190×1510 mm |
Gross Weight /Net Weight | 227/200 kg |
Working Size | 800×800×1000 mm |
Power | 5000 W |
Voltage | 110 V 60 Hz /220 V 50 Hz |
Fitted with a microprocessor based PID digital display system |
used for identifying set value and process values of temperature and running timer |
Inbuilt digital timer to control the temperature from ambient 50 °C to 200 °C with ± 1 °C temperature fluctuation |
Interior of the oven is made up of high-quality stainless steel where chamber corners are semicircle for quick and easy cleaning and longer shelf life |
Digital timer can be set from 0 to 999 min |
Alarm systems for over temperature are provided to ensure that the experiment runs safely avoiding accidental hazards |
Automatic alarm after operation to alert the user that the experiments are done successfully |
Door with double layered temper glass window that makes observing objects in the working chamber more convenient which efficiently prevents heat loss |
Safe, environmentally friendly and easy to use |
Mainly used in the fields of industrial, laboratory, biochemistry, medical health, agricultural research, environmental protection and other research field applications such as drying, moisture content determination, baking, dewaxing, sterilization and heat treatment under vacuum conditions.
