Flame Photometer F-FPM103

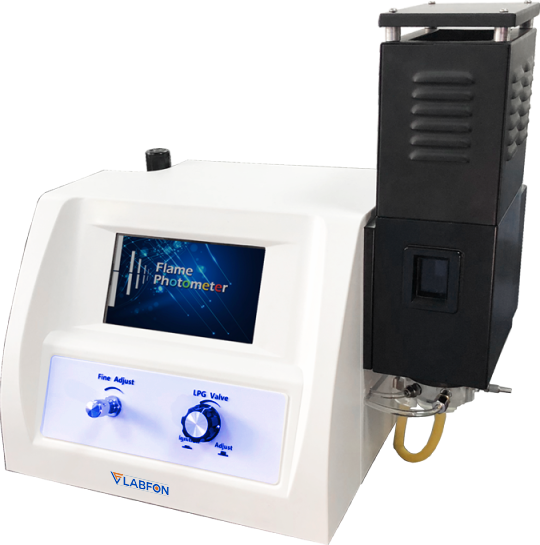

Flame Photometer F-FPM103 is a high quality and high performance instrument with digital output display, used for determination of concentration of certain metal ions. The elements detected are K, Na and Li. There will be no damage to the equipment as the air supply is oil and moisture free. The environmental temperature is 10 ℃ to 35 ℃ and Relative humidity is ≤ 85%. The Flame failures can be easily detected by protection functions for more safe and reliable operation.
Elements Detected | K, Na, Li |
Sensitivity | K: 0.156 ppm Na: 0.184 ppm Li: 0.1 ppm |
Range | K: 0 - 100 ppm Na: 0 - 160 ppm Li: 0 - 100 ppm |
Linearity | K: 0.195 ppm (0.39 - 3.12) ppm Na: 0.69 ppm (1.15 - 9.2) ppm Li: 0.15 ppm (0.25 - 5) ppm |
Aspiration Rate | 2 to 6 mL/min |
Air Supply | 6 L/min at 11 psi |
Response Time | <8 s |
Dimension | 770 x 560 x 390 mm |
Power supply voltage | (220 ± 22) V |
Frequency | (50 ± 1) Hz |
Gross Weight | 22 kg |
K, Na and Li elements are detected |
Dual mode to study the K and Na testing simultaneously |
Protection device for flameouts |
High sensitivity and small amount of sample |
Adjustable flame sizes for easy use |
Repeatability - 1% CV for 20 consecutive samples |
Used widely in the measurement of alkali elements concentration in all sample types in: Mineral Extraction, Oil Industry, Paper Industry, Pharmaceuticals, Soil Analysis, Utilities, Food & Beverage, Chemical Manufacture and Fertilizer and Clinical laboratory testing and Pathological study in medical health.
