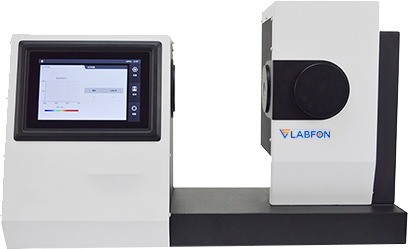

Color and Haze Meter F-HAZM201 referred to as a color, haze and transmittance measurement machine. Performs both vertical and horizontal sample measurements. Features open measurement area; there's no limit on sample size. It uses different light sources sort of A, C, D65 to quantify haze and transmittance of the test sample. Designed in accordance with ASTM, ISO international standards.
ASTM D1003/D1044, ISO13468/ISO14782,
CIE No.15, ISO 7724/1, ASTM E1164
Display
5.0 inch TFT LCD screen
Memory
20000 value
Interface
USB
Power
220 V with power cable
Working temperature
0 to 45°C
Storage temperature
-25 to 50°C
Dimension (L×W×H)
598×247×366 mm
Packaging dimension (L×W×H)
700×340×560 mm
Weight
15.5 kg
Open measurement area, free sample size
Software for color, haze and transmittance measurement
Powerful color measurement function with different measurement indexes
Measures liquid as well as sheet material
Three types of light source A, C, D65
No need of warm up, 03 seconds measurement time
Parameters tested: Color, Haze, Transmittance, Yellowness, and Whiteness Index
5 inch TFT LCD screen
LED light source with 10 years lifetime
Confirms to ASTM & ISO haze measurement standards
Used to measure color, haze, and transmittance of different objects like LCD panel screens used in TV display, car navigation screen, computer screen, the samples like anti-glare plastic sheets, glass films, mobile phone cover, and other transparent and semi-transparent material can be tested.
