Muffle Furnace F-MFFN301

Home Furnaces Muffle Furnace Muffle Furnace F-MFFN301

Muffle Furnace F-MFFN301

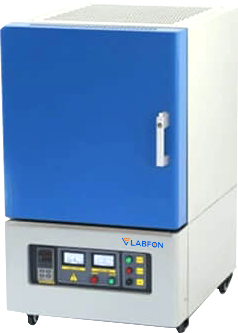

Muffle Furnace F-MFFN301 is a microprocessor controlled furnace with 1600°C maximum temperature and 3.6 L capacity. Furnace is made of high quality alumina polycrystalline fiber curing furnace formed by vacuum suction filtration, and is efficiently designed for minimal space requirement in the laboratory. It features heating elements such as imported silicon carbide rod, B type thermocouple. It has the functions of over-temperature, break-off, over-current protection, etc. It has the advantages of temperature field balance, low surface temperature, fast temperature rise and fall, and energy saving. It is accurate in measuring and controlling the temperature and is equipped with instantaneous energy consumption indicator, calculator for average working temperature and descriptive error indicator.

Capacity3.6 L
Chamber Dimension160 × 150 × 150 mm
PhaseSingle phase
Maximum temperature1600℃
Thermal rate1550℃
Heating elementMoSi2 heating element
TriggerPhase-shifted trigger
Maximum heating rate≤30℃/ Min
Recommended heating rate≤15℃/ Min
Thermocouple TypeB Type
Door opening protection systemThe furnace is equipped with travel switch when the furnace door is opened, the main electric furnace will automatically power off
Safety Protection systemThe furnace is equipped with safety and air switch when the current exceeds the rated current of the open air, the open air will automatically jump, effectively protecting the furnace
Chamber materialAlumina polycrystalline fiber
Silicon controlled106/16E SEMIKRON
Temperature Control Accuracy+/- 1 ℃
Ambient surface Temperature≤35℃
InterfaceRS485 Communication Interface
Power consumption3 kW
Power supply220 V
Dimension520 × 490 × 880 mm

Designed with 30-stage program temperature control intelligent PID adjustment

Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting

Offers over-temperature protection, the electric furnace heating circuit is automatically cut-off

France is made up of High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration

Material used stainless steel, will not rust, and will not slag when used for a long time

Accurate measurement and control of temperature using B type thermocouple

The furnace is equipped with communication interface and software

The surface of the furnace is smooth and not easy to drop powder

The furnace is equipped with safety and air switch when the current exceeds the rated current of the open air, the open air will automatically jump, effectively protecting the furnace

The double-layer furnace shell is equipped with an air-cooling system, which can quickly and gently adapt rise and fall in temperature

Offers, Power off protection, Temperature self-turning function

Muffle Furnace is used in many research centers, medical laboratories to determine the non-volatile and non-combustible proportion of the sample. The testing device is also used for highly sophisticated metallurgical applications. All types of muffle furnaces work on the basis of conventions, conductions, and with the electrical resistance heating elements.
