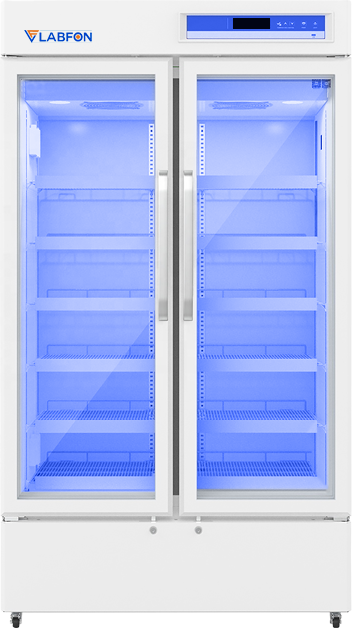

Medical Refrigerator F-MRF304 is an upright type microprocessor-controlled unit, offers 725 L of capacity with 2 to 8°C of temperature range and 5°C of cooling performance. With multi-duct vortex refrigeration system and finned evaporator, features air cooling method and automatic defrost mode with R290 refrigerant. Designed with powder coated materialized housing and aluminum plate with spraying interior having LED lighting and 12 shelves has double glass door with lock. Equipped with digital display and advanced audible and visual alarm system, it has 7- temperature probes and test port with RS485 interface to facilitate the temperature testing and monitoring.
High/Low temperature, High ambient temperature, Condenser overheating, Power failure , Low battery, Sensor error, Door ajar, Built-in data-logger USB Failure, Communication failure, Remote alarm
Lighting
LED
Data Logging/Interval/Recording Time
USB/Record every 10 minute / 2 years
Door opening
Front
Door lock with key
Yes
Door heater
Yes
Shelves
12 (coated steel wire shelf)
Casters
4+ 2 (leveling feet)
Access port
1 pc Φ 25 mm
External material
Powder coated material
Internal material
Aluminum plate with spraying ( optional Stainless steel )
Power supply
220 to 240 V/50 Hz
Rated current
3.9 A
Internal dimension (W×D×H)
980×595×1260 mm
External dimension (W×D×H)
1093×750×1972 mm
Packing dimension (W×D×H)
1187×795×2136 mm
Net weight
171 kg
Gross weight
200 kg
An upright type microprocessor-controlled unit with 725 L of capacity
2 to 8°C of temperature range with 5°C of cooling performance, targeted refrigeration
Multi-duct vortex refrigeration system and finned evaporator, uniform temperature
Air cooling method and automatic defrost mode with CFC-free refrigerant
Easy to clean and low maintenance housing and interiors with LED lighting
Adjustable shelves and double glass door with lock, easy and organized storage
Digital display, allows convenient setting and monitoring of different parameters
Advanced audible and visual alarm system, ensures safe and stable operation
7- temperature probes, high-precision temperature control with low fluctuation
Test port with RS485 interface to facilitate the temperature testing and monitoring
High-efficient, stable and reliable unit for targeted refrigeration of different samples
Medical Refrigerator is used for storage of biological products, vaccines, drugs, reagents etc., across pharmaceutical factories, hospital, centers for disease prevention and control, clinics etc.
