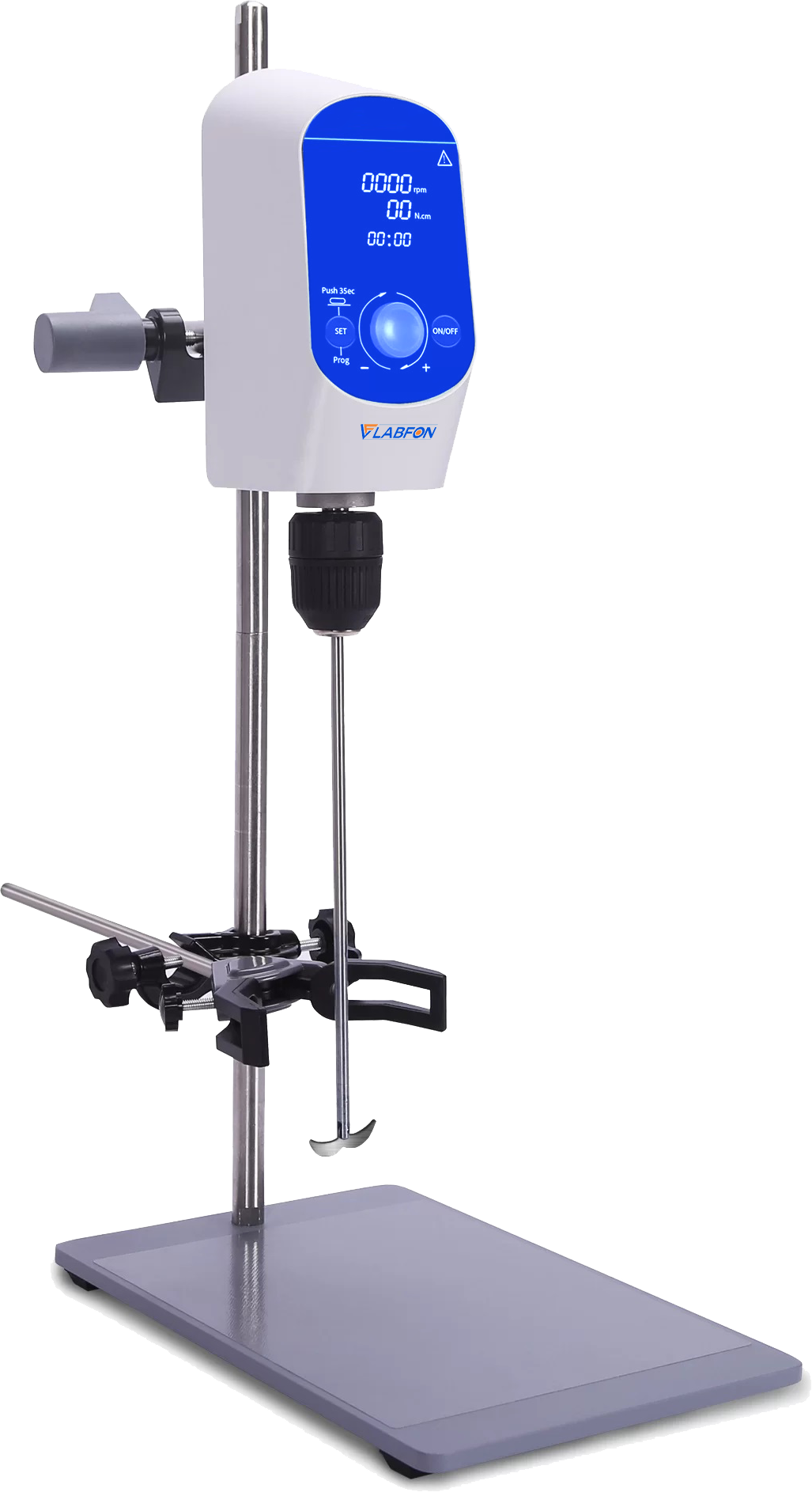

Overhead Electric Stirrer F-OHES102
Home Stirrers Overhead Electric Stirrer Overhead Electric Stirrer F-OHES102
Overhead Electric Stirrer F-OHES102
Overhead Electric Stirrer F-OHES102 is used for standard mixing of the higher viscosity substances. It is essentially offered for blending and agitation of gas intrusion and recirculation. It is mechanically driven by a brushless DC motor to offer a smooth operation while having a capacity of 40 L with a speed range of 100 to 2000 rpm. The instrument automatically alters the torque according to the liquid along with advanced overload protection and responsive speed control.
| Speed Range | 100 to 2000 rpm |
| Speed Control Accuracy | ±5 % |
| Max. Stirring Volume | 40 L |
| Recommended Stirring Volume | 10 L |
| Maximum Stirring Viscosity | 10000 m Pa·s |
| Lifting Range | 300 to 600 mm |
| Timing Range | - |
| Motor Type | DC permanent magnet |
| Net weight | 10 Kg |
| Product size (L×W×H) | 370×260×600 mm |
| Input power | AC 100 to 240 V |
| Frequency | 50/60 Hz |
| Power | 120 W |
Brushless DC motor offers smooth running, noiseless and maintenance-free operation |
Automatically adjustable torque alters with the thickness of the sample liquids |
Various size containers can be placed due to sufficient surface area |
Saftey protection through automatic power-off on over-loading |
Flexible stirring stick to be customized with different vessels loading and unloading |
Automatic shifts circuit in case of unusual conditions |
Widely used for homogenization liquids of high viscosity(thickness) and suspending materials or emulsifying fats and oils in various industries such as chemical, drug manufacture, bio-technology and life science research laboratories.
