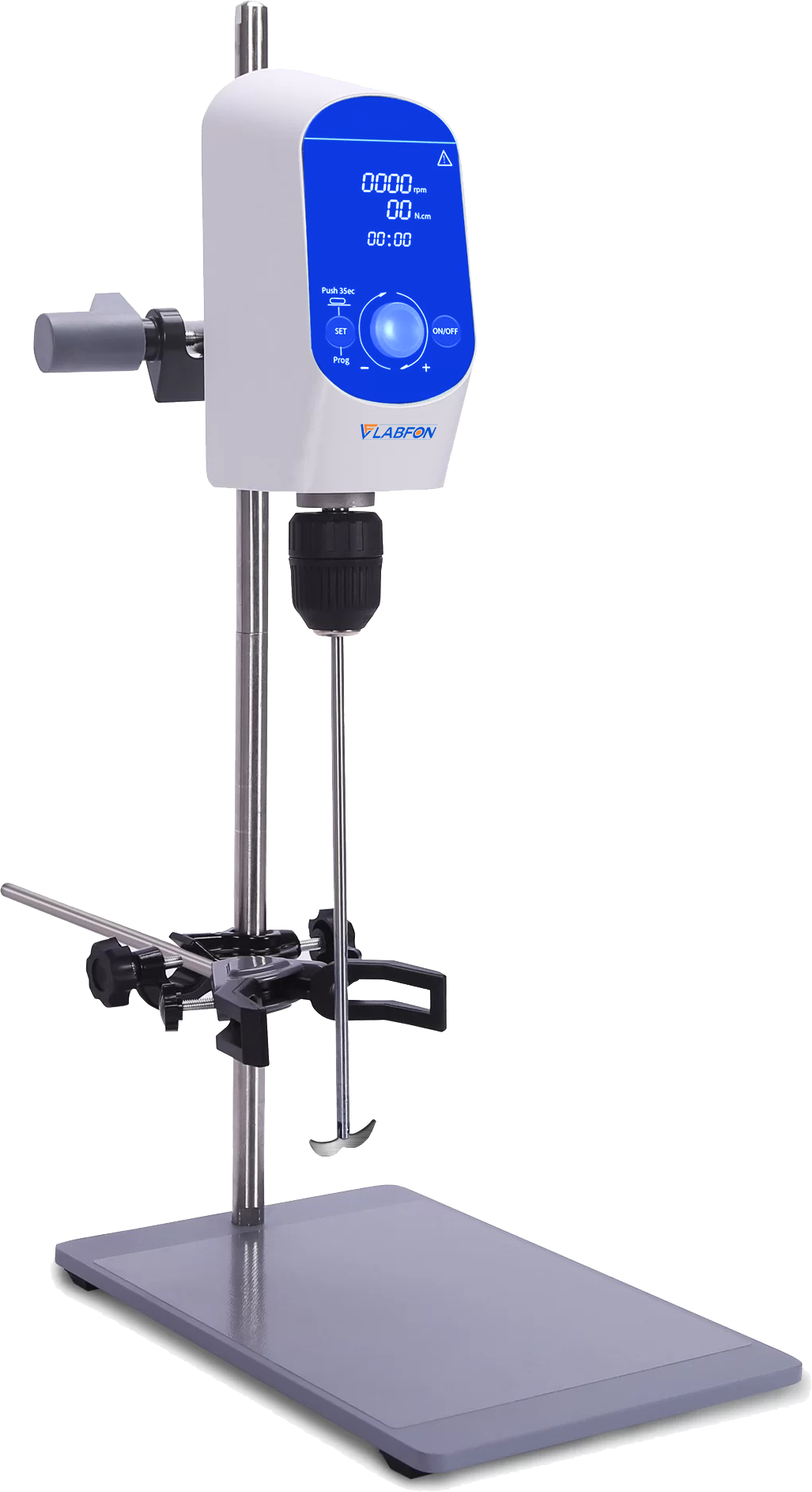

Overhead Electric Stirrer F-OHES103
Home Stirrers Overhead Electric Stirrer Overhead Electric Stirrer F-OHES103
Overhead Electric Stirrer F-OHES103
Overhead Electric Stirrer F-OHES103 is used for standard mixing of the higher viscosity substances. It is essentially offered for blending and agitation of gas intrusion and recirculation. The instrument automatically alters the torque according to the liquid and to have a capacity of 60 L with a speed range of 100 to 2000 rpm. It has advanced overload protection and responsive speed control and is mechanically driven by a brushless DC motor to offer a smooth operation.
| Speed Range | 100 to 2000 rpm |
| Speed Control Accuracy | ±5 % |
| Max. Stirring Volume | 60 L |
| Recommended Stirring Volume | 15 L |
| Maximum Stirring Viscosity | 20000 m Pa·s |
| Lifting Range | 300 to 600 mm |
| Timing Range | - |
| Motor Type | DC permanent magnet |
| Net weight | 12 Kg |
| Product size (L×W×H) | 370×260×600 mm |
| Input power | AC 100 to 240 V |
| Frequency | 50/60 Hz |
| Power | 200 W |
Brushless DC motor offers smooth running, noiseless and maintenance-free operation |
Automatically adjustable torque alters with the thickness of the sample liquids |
Various size containers can be placed due to sufficient surface area |
Saftey protection through automatic power-off on over-loading |
Flexible stirring stick to be customized with different vessels loading and unloading |
Automatic shifts circuit in case of unusual conditions |
Widely used for homogenization liquids of high viscosity(thickness) and suspending materials or emulsifying fats and oils in various industries such as chemical, drug manufacture, bio-technology and life science research laboratories.
