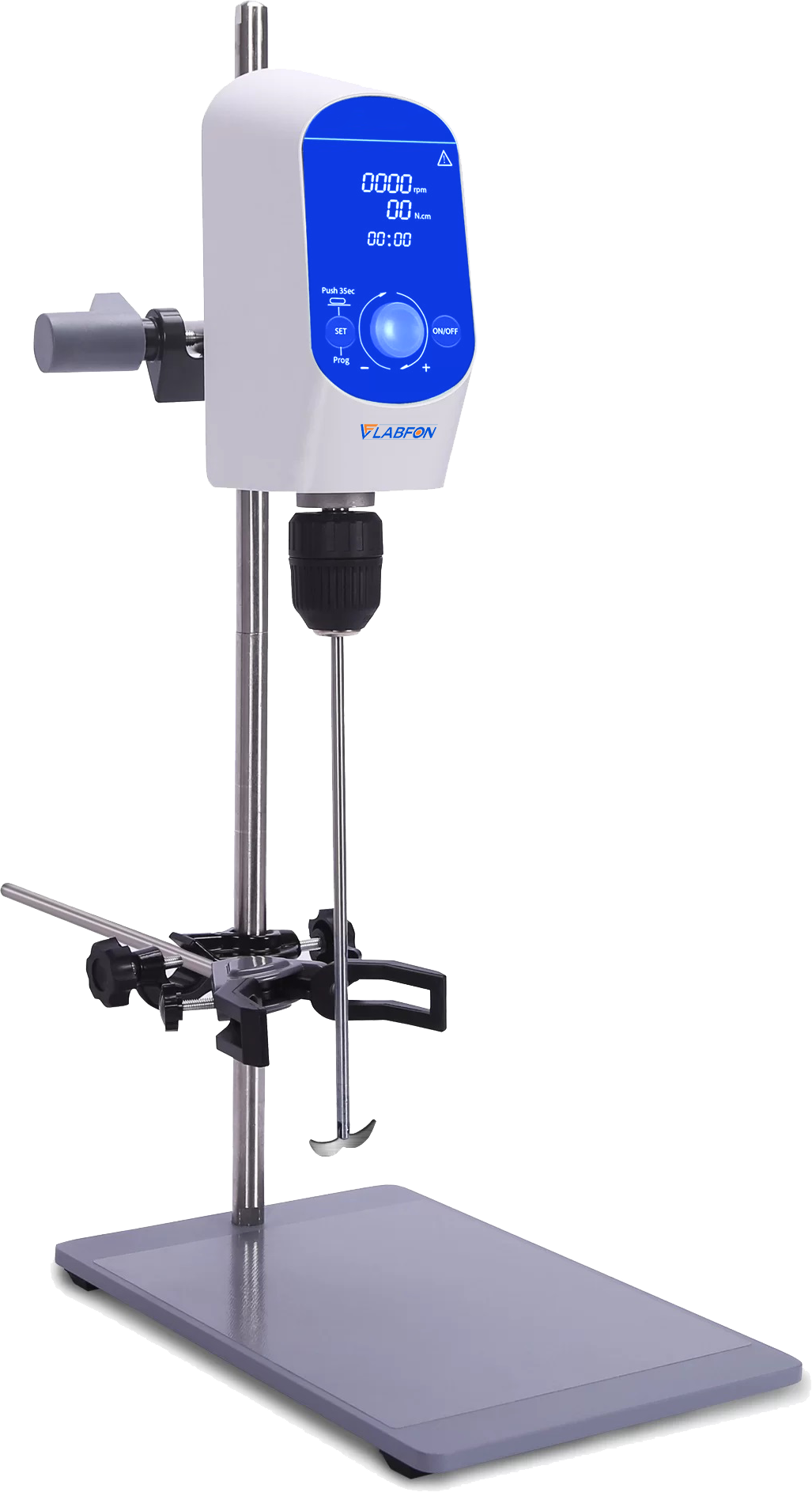

Overhead Electric Stirrer F-OHES106

Home Stirrers Overhead Electric Stirrer Overhead Electric Stirrer F-OHES106

Overhead Electric Stirrer F-OHES106

Overhead Electric Stirrer F-OHES106 is used for standard mixing of the higher viscosity substances. It is essentially offered for blending and agitation of gas intrusion and recirculation. The instrument displays digitally through an LED digital tube display and automatically alters the torque according to the liquid and to have a capacity of 60 L with a speed range of 100 to 2000 rpm. It has advanced overload protection and responsive speed control and is mechanically driven by a brushless DC motor to offer a smooth operation

Speed Range100 to 2000 rpm
Speed Control Accuracy±10 %
Max. Stirring Volume60 L
Recommended Stirring Volume15 L
Maximum Stirring Viscosity20000 mPa·s
Lifting Range300 to 600 mm
Timing Range99 minutes or open
Motor TypeDC permanent magnet
Net weight12 Kg
Product size (L×W×H)370×260×600 mm
Input powerAC 100 to 240 V
Frequency50/60 Hz
Power200 W

LED digital tube displays clear visible data values which are easy to record

Brushless DC motor offers smooth running, noiseless and maintenance-free operation

Automatically adjustable torque alters with the thickness of the sample liquids

Various size containers can be placed due to sufficient surface area

Saftey protection through automatic power-off on over-loading

Flexible stirring stick to be customized with different vessels loading and unloading

Automatic shifts circuit in case of unusual conditions

Overhead Electric Stirrer are widely used for homogenization liquids of high viscosity(thickness) and suspending materials or emulsifying fats and oils in various industries such as chemical, drug manufacture, bio-technology and life science research laboratories.
