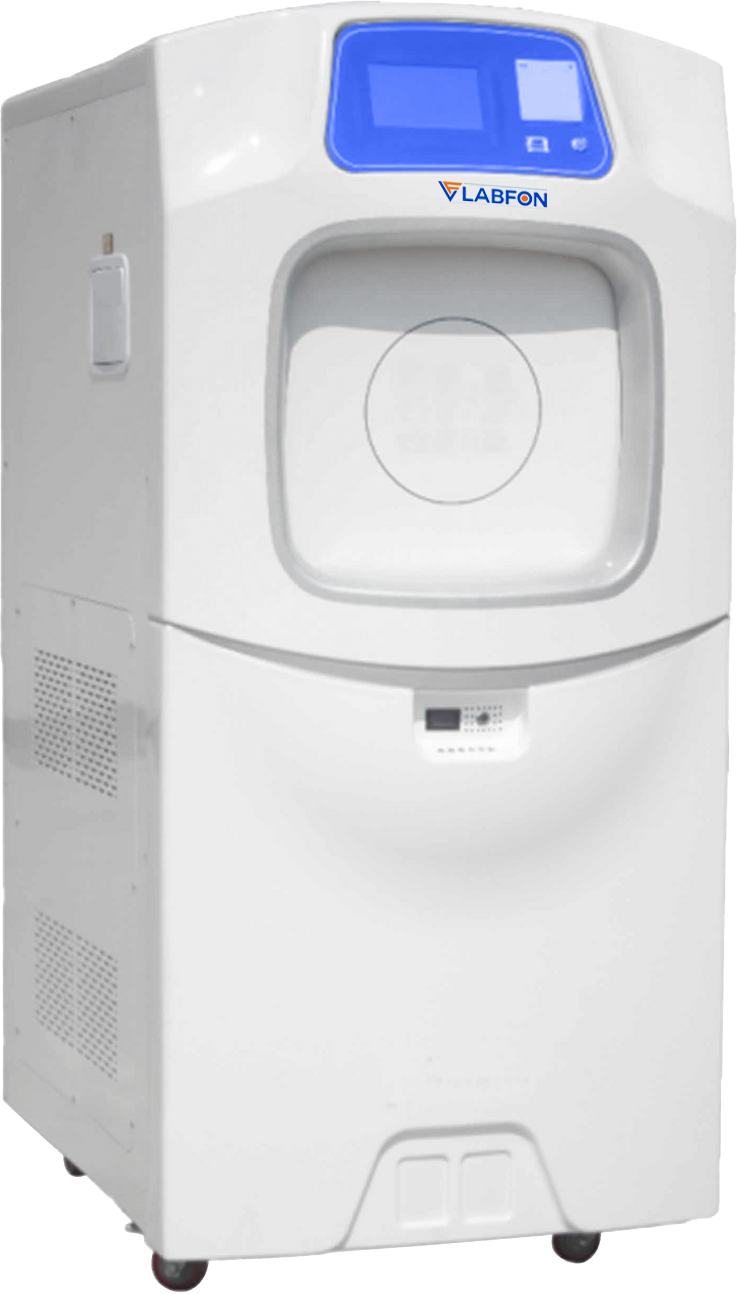

Plasma autoclave F-PLA202

Home Autoclave Plasma Autoclave Plasma autoclave F-PLA202

Plasma autoclave F-PLA202 comes with sliding door, rectangular chamber design, microprocessor PLC controlled system and 130 L volume capacity. Adopted with excellent thermal conductivity ensures 100% maintenance of gaseous hydrogen peroxide. Equipped with high and low temperature alarm system, pressure and temperature sensors, H2O2 resistant rotary vane vacuum pump for quality performance. The maximum storage space is obtained by loading items on the two layers of aluminum alloy punching plate.

Specification Features Applications Optional Accessories Download Catalog

Capacity	130 L
Door type	Rectangular type, sliding door
Chamber material	Anti-corrosion type SUS 304 stainless steel
Sterilizing agent	60 % (H2O2) hydrogen peroxide
Working temperature	50 ± 5°C
Standard sterilization time	45 to 50 min
Vacuum	-50 Pa
Installation environment temperature	5 to 45°C
Vacuum speed	Absorb to – 50 Pa in five minutes
High anti-pressure valve	10 Pa
Operation height (for chamber design)	≤ 160 cm
Chamber temperature heating power	2.75 kW, pre-heating time 30 mins
Electrode material	Anti-corrosion type SUS 304 stainless steel
Sealing door material	Anti-corrosion type SUS 304 stainless steel
Carton material	Carbon steel baking plastic powder and ABS
Storage U disk capacity	≥ 8 G
Air filter accuracy	≤ 0.2 µm
Chamber dimension (LWH)	750 × 450 × 400 mm
Packaging dimension (LWH)	1070 × 810 × 1780 mm
Power	4.35 kW
Power supply	heating method AC220 V, 50 Hz
Gross weight	360 kg

7 inch touch screen LCD display

Electric lift door open mode

Fully automatic control system

Large storage capacity

High strength rotary vane vacuum pump

Exhaust oil mist filtration system

Door protection switch function

Adapted with anti-explosion and fire resistance heating system

Micro printer (data reviewing) attachment

Manual setting for different sterilization programs

Use friendly appearance

Used in the hospital, pharmaceutical factory, lab, medical institutions for low temperature sterilization of heat sensitive materials.

F-PLA202

Accessories No.	Name
1	Hydrogen Peroxide (6-10 g/ bottle)
2	Indicative tape (20 × 25 mm/ roll)
3	Biological indicator (25 pieces/ box)
4	Chemical indicative card (200 pieces/ box)
5	Chemical indicative label
6	Sterilization packing bag
7	Non-woven fabrics
