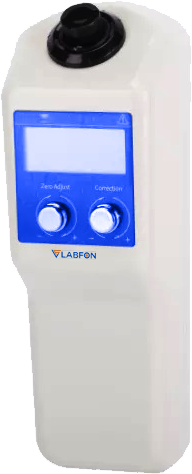

Portable Turbidity Meter F-PTM201 is a digital device to measure the degree of scattering caused by insoluble particulate matter and determining the quantity of it which is suspended in water or transparent liquids. The working principle is based on the nephelometric (90° scattered light sensor) method. Turbidity meter is offered with a range of 0 to 200 NTU. It is equipped with three light detectors and LED light sources which are permanently kept under control in order to guarantee long-term stability.
DC 1.5 V×5 AA alkaline dry battery AC 220V/50Hz/DC7.5V/0.2A
Dimension
235×75×65 mm
Weight
0.3 kg
Offers LED light source with 850 nm for higher precision
Nephelometric principle is used with 90° detections of suspended particles
Automatically adjusted range and multiple calibration point for easy operation
Determination of turbidity of drinking water at ground surface and saline water at domestic and industrial wastes
Turbidity meter is needed in order to conveniently test the quality of various different areas of water that can be drinking water, including food processing and beverage manufacturing and many applications where fluid clarity is crucial.
