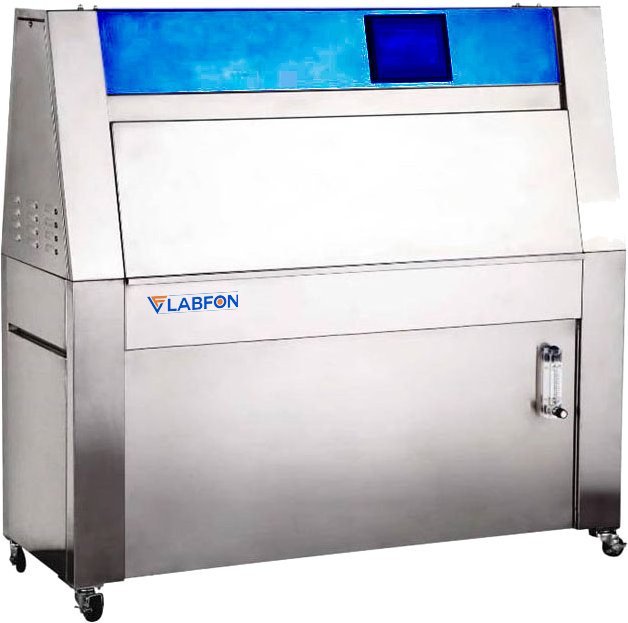

UV Test Chamber F-UVTC101 offers 45℃ to 80℃ temperature Range for light cycle, and 40℃ to 60℃ temperature range for condensation cycle. Adopted with 08 pcs standard sample test shelf with size (75 × 150 mm). Designed with 4.3 inch touch screen, menu type interface could set parameters fast, which is easy to understand and operation. It features 3 holes spray header to meet the uniformity of rainfall for flat sample rack. Overall chamber made up of advanced stainless steel material. Equipped with 4 pieces of 20 W ultraviolet lamp, more stable operation and the life of the lamp is up to 5000 hours. Build-in 4 pieces of 70 x 150 flat sample racks, the users can test for three-dimensional or flat samples.
Dark, light, spray, condensate set multi-cycle automatic control
Dimension
770 × 565 × 690 mm
Power consumption
2000 W
Power supply
220 V, 50 Hz
Net weight
98 kg
Gross weight
125 kg
4.3 inch touch screen, menu type interface to set parameters fast, easy to understand and carry out operations
4 pieces of 20 W ultraviolet lamp, more stable operation and the life of the lamp is up to 5000 hours
3 holes spray header to meet the uniformity of rainfall for flat sample rack
Offers light source of UVA fluorescent ultraviolet lamp
Radiation intensity adjustment with optional RM-20 irradiance meter which by manual adjustment
Adopted with blackboard temperature self-control by test set value, to meet user for lighting, condensation, spray, temperature and other aging test chamber
UV Test Chamber used for heat resistance testing of electrical insulation, ventilation-aging testing of electronic parts, plasticizing product, leather textile test, treatment of mandatory ventilation, etc.
