Vacuum Oven F-VACO103
Home Oven Vacuum Oven Vacuum Oven F-VACO103
Vacuum Oven F-VACO103

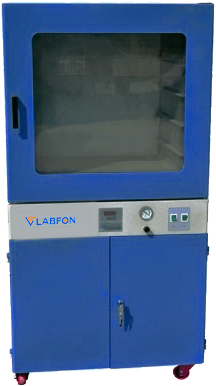

Vacuum Oven F-VACO103 is designed with a rectangular chamber of 90 liters capacity that enables effective, gentle drying without damaging the material being dried at 50 °C to 250 °C ambient room temperatures. This vacuum oven includes a microprocessor controlled PID system having a digital display to view setting and actual temperature and running time, built in over temperature and automatic alarms for safety and glass door window which allows easy viewing of the samples inside the chamber
Volume | 90 L |
Temperature Range | 50 to 250 ℃ |
Temperature Fluctuation | ± 1 % |
Vacuum Degree | < 133 Pa |
Timer | 0 to 999 min |
Voltage | 220 V 50 Hz |
Vacuum Pump | Yes |
Dimension (W× D× H) mm | 610×670×1430 mm |
Gross Weight /Net Weight | 163/117 kg |
Working Size | 450×450×450 mm |
Power | 1600 W |
Designed with a rectangular chamber of capacity 90 liters |
Operates at ambient room temperatures ranging between 50 °C to 250 °C with ± 1 % fluctuations in temperature |
Its temperature range is controlled through a microprocessor controlled PID tuning system having a digital display of set value and actual value |
Digital display to view parameters such as set and actual temperature and running time |
Equipped with vacuum pumps to pump the gas to the closed chamber at vacuum pressures lesser than 133 Pa |
Provided with a toughened glass window in the door to allow easy viewing of the samples inside the chamber |
Safety features include over temperature alarm and automatic alarm that provides protection to the users during operation User friendly, safe and reliable |
Mainly used in the fields of industrial and laboratory applications such as drying, moisture content determination, baking, dewaxing, sterilization and heat treatment under vacuum conditions
