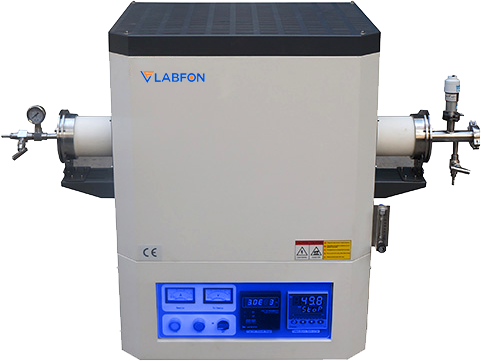

Vacuum Atmosphere Tube Furnace F-VTFN304
Vacuum Atmosphere Tube Furnace F-VTFN300 series is a microprocessor controlled chamber with stable PID temperature control system with a vacuum atmosphere. Equipped with a heating speed of 60 minutes to reach 1600℃, the temperature uniformity with excellent protection of heating elements (MoSi2 rod) is maintained. One press start button for pre-set programmes with alerting signal for overheating of chamber.
Tube size | ᴓ 100 x 1000 |
Maximum temperature | 1700 °C |
Thermocouple | B style |
Heating element | MoSi2 rod |
Working temperature | 1650 °C |
Heating speed | 60 minutes to reach 1600℃ |
Heating length | 300 mm |
Alundum tube size | Φ10 mm ~ 150 mm |
Chamber material | Alumina Ceramic Fiber |
Temperature precision | ± 1 °C |
Voltage | 380 V |
Power | 8 kW |
High temperature MoSi2 rod for heating elements |
Heating speed – 60 minutes to reach 1600 ? |
PID controlled temperature controller with a precision of 1 °C |
One button press start for pre-programmed functions |
Double walled housing for high stability |
1700 °C MoSi2 heating rod |
Alert signal for overheating of chamber |
Type B thermocouple |
Heat curve can be preset with the programmable function |
2 programmable groups with 16 segments in each group |
Used for fusing glass, soldering, brazing, creating enamel coatings, ceramics , research centers, medical laboratories to determine the non-volatile and non-combustible proportion of the sample and for highly sophisticated metallurgical applications
