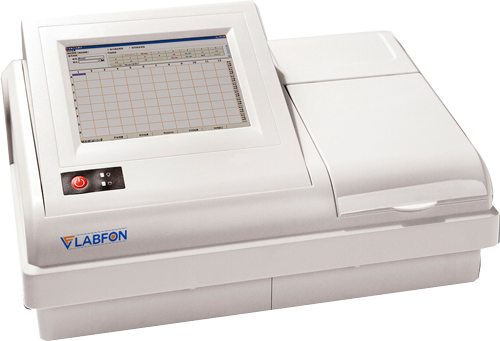

Description : Microplate reader F-MPR102 is a fast and accurate reader with 8 channel dispension and a wavelength range of 400 ~ 750 nm. Equipped with shaking function with adjustable speed and time. Features horizontal or longitudinal arrangement of 96 well plates with multiterm testing. Suitable for self-contrast with row and column subtraction with self-check diagnosis for optical parts. Built-in features include quick blank tagging, quality control and multi valued comparison.

Specifications :

Wavelength range	400 ~ 750 nm
Interface	2 USB two way communication interface
Sharking	-
Blank ways	single well , multiple well , rows and column
Computer connectivity	Built-in computer
Optical filters	4 standard filters ( 405 nm , 450 nm , 492 nm , 630 nm )
Photo detector	-
Light source	6V, 10 W tungsten halogen lamp (work over 5000 hrs.)
Measurement methods	single wavelength , dual wavelength , multiple wavelength , two point method , dynamic assay
Calculation method	absorbance, single point calibration, linear regression, quadratic curve, four parameters equation
Measuring speed ( single wavelength )	3 secs per 96 wells
Measuring speed ( dual wavelength )	9 secs per 96 wells
Measurement range	0.0000 ~ 4.5000 Abs
Temperature	5 °C ~ 40 °C
Indication range	-
Resolution	0.0001 A
Linearity	± 0.5 % or < 0.025 A
Repeatability difference	< 0.1 % or ± 0.0025 A
Rows and column difference	< 0.01 A
Accuracy	-
Reproducibility	-
Display	8 inch touch screen ( displays whole microplate results and calibration curve )
Data storage	300 test programmes , 5 pieces of 96 wells
Additonal filters	-
Power supply	100 V ~ 240 V
Dimension	525 x 420 x 260 mm
Weight	9 kg

Features : Eight channel zero dispersion Automated well centre positioning 96-well testing in 3 secs Adjustable shaking speed and time Horizontal or longitudinal 96-well microplate arrangement Self-contrast with rows and column subtraction Multitermtesting ( 1 microplate upto 12 terms ) Automatic tracking and analysis with data change trend Test data saving in MS excel for further analysis

Applications: Used for DNA, RNA quantity measurement with fluorescent dyes (eg. Pico Green), DNA, RNA and protein quantification, analytic immune and biochemistry assays (eg. ELISA) and kinetic analyses
