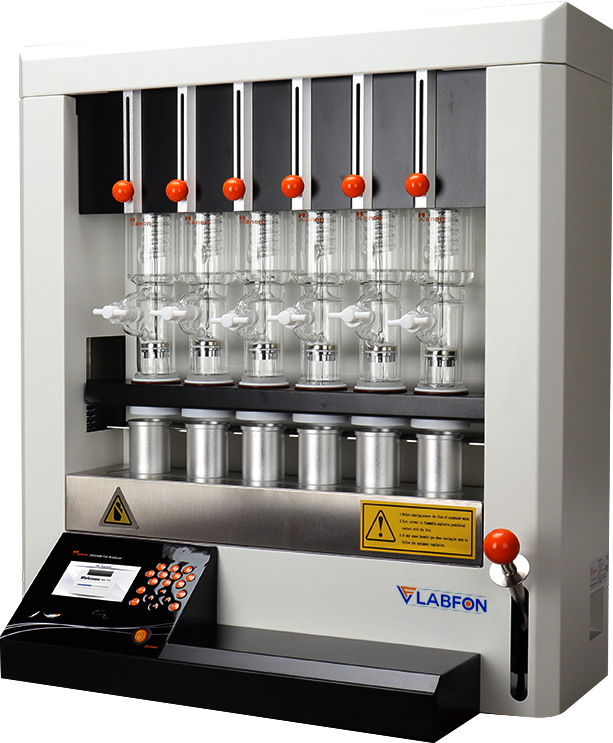

Description : Soxhlet Extractor Fat Analyzer F-SFA102 can deal with six test tests at the same time and ideal temperature can be picked for reagent edge of boiling and ambient temperature for tests to achieve quick assessment. Hardware works under the rule based of Soxhlet extraction rule and fuses various assignments in single unit like soaking, extraction, filtering, warming, condensation and solvent recovery. Furnished with component of reusing reagent to decrease test cost. The samples can be handled with temperature scope of +5 ℃ to 280 ℃. It is fitted with metal shower warming utilizing customized temperature control framework for uniform warming and safe movement.

Specifications :

Temperature range	Room temperature +5 ℃ to 280 ℃
Measuring Range	0.1 to 100%
Temperature accuracy	±1℃
Sample weight	0.5 to 15 g(generally 2 to 5 g depending on sample)
Capacity per batch	6 pcs/batch
Solvent cup volume	80 mL
Solvent recovery	≥80%
Shortened extraction time	20 to 80%
Power Supply	220 VAC±10%, 50 Hz
Power	1 KW
Dimensions (L×W×H)	650×320×715 mm
Net Weight	35 Kg

Features : The lifting function of straight bearing conduction strategy gives smooth and open to lifting activity Exclusive air protection method provides two capacities the case in room temperature has warm protection and temperature upkeep 4.3-inch LCD screen and microcomputer control system are equipped to stable control the system High accuracy of temperature control ensures essential metal warming Electric circuit, Timer circuit is disconnected from the extraction space, guaranteeing sample and the equipment security Over-temperature and clock reminding capacities are accessible Triple cautions for example sound, light, LCD screen word prompts are accessible Abundant interface substance gives concurrent presentation of given temperature, real temperature, given time and warming time

Applications: Extraction of substance from solid or semi-solid mixtures. Determine the soluble organic compounds contained in foods, feeds, medicines, soil, sludge, polymers, fiber products, petrochemical products, detergents, rubber, plastics and other materials.
