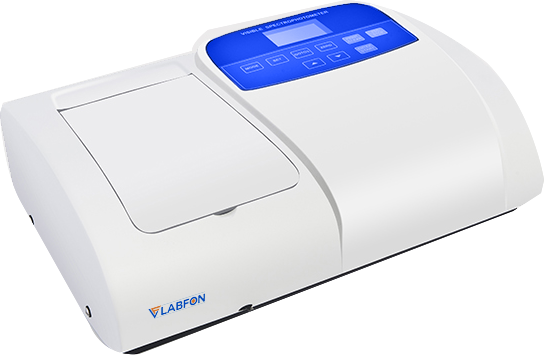

Description : Single beam UV-Visible spectrophotometer F-SUVS201 comes with 190 to 1100 nm wide wavelength range, 4 nm bandwidth and silicon photodiode detector. Designed with automatic wavelength setting mode, to avoid operational errors, and to take quick measurements. Advanced ARM system and long optical system ensures precision measurements and good stability.

Specifications :

Optical system	Single beam, grating 1200 lines/ mm
Wavelength range	190 to 1100 nm
Bandwidth	4 nm
Wavelength accuracy	±1 nm
Wavelength repeatability	0.5 nm
Wavelength setting	Automatic
Function	Standard curve & co efficient method
Photometric accuracy	±0.5% T
Photometric repeatability	0.3%T
Photometric mode	T, A, C, E
Photometric range	0.3-3 A, 0-200% T
Stability	±0.002A/h @500 nm
Stray light	≤0.2%T
Display	128 × 64 dots LCD
Lamps	Deuterium lamp & Tungsten lamp
Detector	Silicon photodiode
Output	USB port & parallel port (Printer)
Power	AC 220V/50Hz or 110V/60Hz
Dimension	420×280×180 mm
Weight	12 kg

Features : Single beam optical system with grating 1200 lines/ mm Imported deuterium lamp ensures low stray light and photometric accuracy Digital LCD screen with 2.5 inch clear display Display wavelength, absorption, transmittance with 5 results per screen Sets multiple standard curves as per customer’s specific requirement 200 results data memory storage USB port with connection to the PC’s for Spectrophotometer software

Applications: Used for detection of impurities, functional groups, nucleic acids, proteins, sugars etc. across pharmacy, life science, medicine and clinical research laboratories and testing centers.

Standard Accessories: Accessories No. Name Qty. 1 1cm Glass cuvette 4 pcs 2 Power cord 1 pc 3 1cm quartz cuvette (UV series) 2 pcs 4 Dust cover 1 pc
