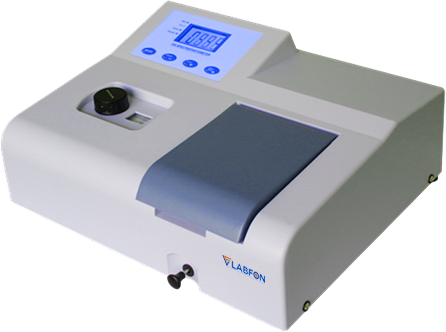

Description : Visible Spectrophotometer F-VISS102 is a single beam spectrophotometer with a wavelength of 330-1020nm and wavelength repeatability of 1nm. Equipped with a bandwidth of 5 nm for peak resolution, it works on detection of light intensity between reference and test sample. The highly stable optics and silicon photodiode detector measures the sample and reference simultaneously optimizing the measurement accuracy. The simple design of the product makes model an ideal tool for everyday usage purpose.

Specifications :

Optical system	Single beam, grating 1200 lines/mm
Wavelength range	330nm ~ 1020 nm
Spectral bandwidth	5 nm
Wavelength accuracy	±2 nm
Wavelength repeatability	1 nm
Photometric accuracy	± 0.5 % T
Photometric repeatability	0.2 % T
Photometric range	0-200%T, -0.3-3A
Stray light	0.3 % T
Stability	0.002A
Baseline flatness	± 0.002 A
Noise	± 0.001A
Wavelength setting	manual
Display	LED screen
Light Source	Tungsten lamp
Detector	Silicon photo diode
Data output	RS232 port
Power	AC 220V / 50 Hz or AC 110V / 60 Hz
Dimension	520*450*320 mm
Weight	10 kg

Features : LED display for visual optimization and access to a range of functions Wavelength ( 330 to 1020 nm ) Spectral Bandwidth ( 5 nm ) Optical system – 1200 lines/mm gratings Silicon photo diode detector Output source - RS232 port Source of light – Tungsten lamp

Applications: Used widely in universities and colleges, food and beverage production and quality control, agricultural monitoring etc. medical testing, food, petrochemical industry, environmental protection and monitoring and other fields.
