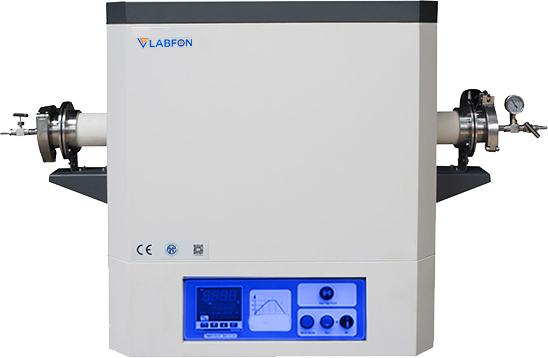

Description : Vacuum Atmosphere Tube Furnace F-VTFN200 series is a microprocessor controlled chamber with stable PID temperature control system with a vacuum atmosphere. Equipped with a heating speed of 15 to 30 minutes from RT to 1000℃, the temperature uniformity with excellent protection of heating elements (SIC) is maintained. One press start button for pre-set programmes with alerting signal for overheating of chamber.

Specifications :

Tube size	ᴓ 60 x 1000
Maximum temperature	1400 °C
Thermocouple	S style
Heating element	SIC
Working temperature	1350 °C
Heating speed	15 to 30 minutes from RT to 1000℃
Heating length	300 mm
Alundum tube size	Φ10 mm ~ 150 mm
Chamber material	Alumina Ceramic Fiber
Temperature precision	± 1 °C
Voltage	220 V
Power	4 kW

Features : High temperature SIC for heating elements Heating speed – 15 to 30 minutes from RT to 1000? PID controlled temperature controller with a precision of 1 °C One button press start for pre-programmed functions Double walled housing for high stability Alert signal for overheating of chamber Type S thermocouple Heat curve can be preset with the programmable function 2 programmable groups with 16 segments in each group

Applications: Used for fusing glass, soldering, brazing, creating enamel coatings, ceramics , research centers, medical laboratories to determine the non-volatile and non-combustible proportion of the sample and for highly sophisticated metallurgical applications

Optional Accessories: Accessory No Accessory 1 Paperless recorder 2 Alumina crucible 3 Stainless steel exhaust chamber

Standard Accessories: Accessory No Accessory 1 Crucible tong 2 High temperature gloves
