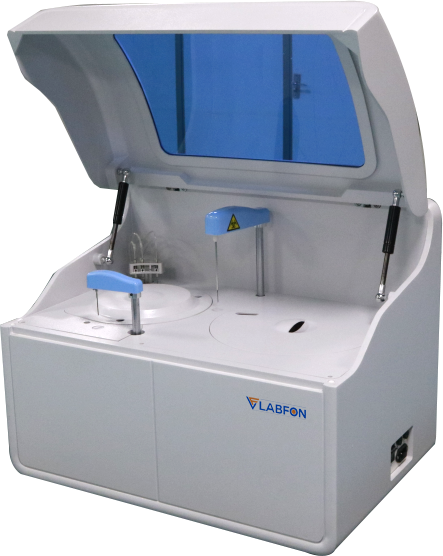

Labfon Auto Chemistry Analyzer F-AMCA201 is a bench-top, completely automated chemistry analyzer with a throughput of 200 tests per hour. With expanded on-board testing, reduced sample volume, and simple operation, this is a suitable chemical analyzer for low to mid-volume hospitals and laboratories worldwide. The easy-to-use interface provides a long-term basis for analytical performance. This system contains standardized test menus, assay methods, instrument operations, and reference ranges, all of which limit operator variation and offer consistent quality results.
Linear: K factor, 1-point, 2-point and multipoint linear
Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5
Quality Control
Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D)
Software
Windows 7/8/10, 32 or 64bit
LIS System
Bi-direction, support HL7 protocol
Interface
LAN port access
Printer
External, multiple reporting mode available
Temperature
10 to 30°C
Temperature Control
37±0.1°C, real time monitor
Water Consumption
Deionized water: 5 L/H
Power Supply
AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W
External Dimension (W×D×H)
625×425×460 mm
Package Dimension (W×D×H)
721×531×855 mm
Net Weight
36 kg
Gross Weight
55 kg
Intelligent software
High quality components
Uninterrupted workflow
Inventory management
Cost effective operation
Crash and collision detection
Robust testing capabilities
Efficient reagent and consumable use
Simplify operations with user friendly graphical user interface design and touch-screen monitor
Refrigerated tray with independent switch
Labfon Auto Chemistry Analyzer is used in many Biology and Histopathology Laboratories to extract the serum, plasma, urine or any other body fluid, Research institutes etc.
