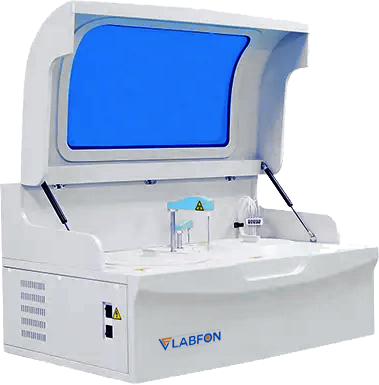

Labfon Auto Chemistry Analyzer F-AMCA202 is a bench top, fully automated chemistry analyzer with a throughput of 200 tests per hour. This is an ideal chemistry analyzer for mid to high volume hospitals and laboratories with an increased-on board testing, reduced sample volume and easy operation for laboratories around the world. The user-friendly interface provides a long-life platform for analytical excellence. This system includes reagents, controls and calibrators along with standardized test menus, assay protocols, instrument processes and reference ranges that reduce operator variation and provide consistent quality results.
Linear: K factor, 1-point, 2-point and multipoint linear
Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5
Quality Control
Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D)
Software
Windows 7/8/10 LIS system available
LIS System
Bi-direction, support HL7 protocol
Interface
LAN port access
Printer
External, multiple reporting mode available
Temperature
10 - 30°C
Temperature Control
37±0.1°C, real time monitor
Water Consumption
Deionized water: 5 L/H
Power Supply
AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W
External Dimension (W×D×H)
950x612x510 mm
Package Dimension (W×D×H)
1118x728x1151 mm
Net Weight
75 kg
Gross Weight
130 kg
Intelligent software
High quality components
Uninterrupted workflow
Inventory management
Cost effective operation
Crash and collision detection
Robust testing capabilities
Efficient reagent and consumable use
Simplify operations with user friendly graphical user interface design and touch-screen monitor
Refrigerated tray with independent switch
Labfon Auto Chemistry Analyzer is used in many Biology and Histopathology Laboratories to extract the serum, plasma, urine or any other body fluid, Research institutes etc.
