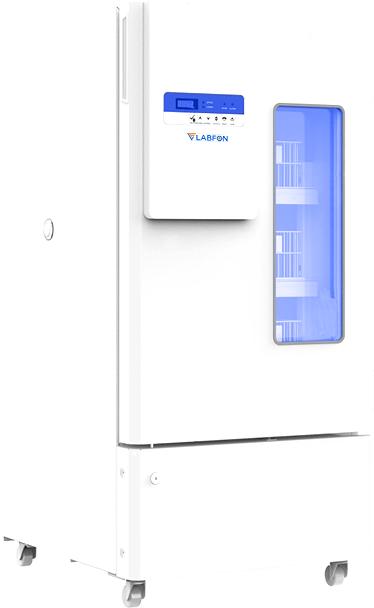

Blood Bank Refrigerator F-BBRF102

Home Refrigerators Blood Bank Refrigerator Blood Bank Refrigerator F-BBRF102

Blood Bank Refrigerator F-BBRF102

Blood Bank Refrigerator F-BBRF102 is an upright type microprocessor-controlled unit, comes with 170 L of capacity and 2 to 6°C of temperature setting range. With high precise temperature control system and automatic defrost, features return air duct design and advanced air cooling with power management module. Equipped with built-in sensors for upper/lower zone temperature, ambient temperature, evaporator temperature, and operation control, has advanced audible and visual alarm system. Designed with powder coated materialized housing and aluminum plate with spraying interior, has 3 steel coated wire shelf with 9 blood- basket. Incorporated with R290 refrigerant, EBM fan motor and high-efficient compressor, it also supports RS485 interface and remote alarm contact.

Capacity170 L
Cabinet typeUpright
Temperature setting2 to 6℃
Ambient temperature16 to 32℃
Cooling methodAir cooling
DefrostAutomatic
RefrigerantR290
Climate ClassN
ControllerMicroprocessor
DisplayDigital display
Compressor1 pc
Alarm systemHigh/Low temperature, High ambient temperature, Power failure , Low battery, Sensor error, Door ajar, Condenser overheating, Built-in datalogger USB failure, Communication error
External MaterialPowder coated material
Internal MaterialAluminum plate with spraying (optional SS)
Insulation thickness55 mm
Shelves3 (coated steel wired shelf) (optional SS drawer)
Blood basket9
Casters4 (2 casters with brake)
Door lock with KeyYes
Access Port1 pc. Φ25 mm
Data Logging/Interval/Recording TimeUSB/Record every 10 min/ 2 years
Backup BatteryYes
Power supply220 V 50 Hz
Power230 W
Rated current1.64 A
Internal dimension (W×D×H)525×550×690 mm
External dimension (W×D×H)658×772×1283 mm
Net weight106 kg

An upright type microprocessor-controlled unit, precise temperature control

170 L of capacity with 2 to 6°C of temperature setting range, efficient operation

High precise temperature control system and automatic defrost, stable operation

Return air duct design and advanced air cooling with power management module

Built-in sensors for upper/lower zone temperature, ambient temperature, evaporator temperature, and operation control

Advanced audible and visual alarm system for different operation parameters

Powder coated materialized housing and aluminum plate with spraying interior

3 steel coated wire shelf with 9 blood- basket, organised and efficient sample storage

R290 refrigerant, EBM fan motor and high-efficient compressor, safe and stable

Supports RS485 interface and remote alarm contact

Blood bank refrigerator is used for safe and convenient storage of whole blood, blood components such as blood cells, plasma etc., and reagents across blood bank, hospitals, health and disease prevention systems, research institutions, colleges & universities, electronic industry, biological engineering, biotechnology, military enterprises, deep-sea fishing companies, etc.
