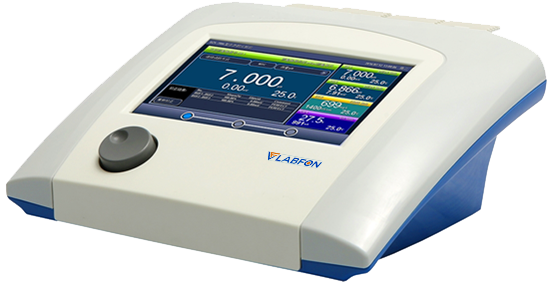

Benchtop Multiparameter Analyzer F-BMA103
Home Testing Meter Multiparameter Analyzer Benchtop Multiparameter Analyzer F-BMA103
Benchtop Multiparameter Analyzer F-BMA103
Benchtop Multiparameter Analyzer F-BMA103 performs a wide range of function that measures various components within 11 parameter ranges. The subjected solution is auto recognized by the instrument which avoids the need for any manual alteration. It can measure the pH range of -2.000 to 20.000 pH and TDS range 0.000 mg/L to 1000 g/L. It has a 7-inch touch screen display that offers a great visibility for the procedure to carry out and recording of the data. It comprises vast storage that manages the data and allows to search, compare and review.
pH Range | -2.000 to 20.000 pH |
pH Resolution | 0.001 pH |
pH Accuracy | ±0.002 pH |
mV Range | -2000.00 to 2000.00 mV |
mV Resolution | 0.01 mv |
mV Accuracy | ±0.03 % FS |
Ion pX Range | 0.000 to 14.000 pX |
Ion pX Resolution | 0.001 pX |
Ion pX Accuracy | ±0.002 pX |
Ion concentration Range | 0 to 19990 Unit: mol/L, mmol/L, g/L, mg/L, μg/L |
Ion concentration Resolution | Ion concentration Resolution 4-digit Significant Number |
Ion concentration Accuracy | ±0.3 % |
Conductivity Range | 0.000 μS/cm to 3000.0 mS/cm |
Conductivity Resolution | 0.001 μS/cm |
Conductivity Accuracy | ±0.5 % FS |
Resistivity Range | 5.00 Ω.cm to 100.00 MΩ.cm |
Resistivity Resolution | 0.01 Ω.cm |
Resistivity Accuracy | ±0.5 % FS |
TDS Range | 0.000 mg/L to 1000 g/L |
TDS Resolution | 0.001 mg/L |
TDS Accuracy | ±0.5 % FS |
Salinity Range | 0.00 to 8.00 % |
Salinity Resolution | 0.0001 |
Salinity Accuracy | ±0.1 % |
DO Range | 0.00 to 90 mg/L |
DO Resolution | 0.01 mg/L |
DO Accuracy | ±0.01 mg/L |
DO concentration Range | - |
DO concentration Resolution | - |
DO concentration Accuracy | - |
DO saturation Range | 0.0 to 600 % |
DO saturation Resolution | 0.001 |
DO saturation Accuracy | ±2.0 % |
Temperature Range | 5.0 to 130.0 ℃ |
Temperature Resolution | 0.1 ℃ |
Temperature Accuracy | ±0.1 ℃ |
Power Supply | 100 V to 240 V (50/60Hz) |
Dimension | 280×280×130 mm |
Weight | 2.5 kg |
7 inches touch screen LCD display with backlight and user guidance system is present which makes it easy to use |
Automatic/Manual temperature compensation is delivered that ensures accurate results |
It is comprised of over 30 settable parameters that have a number of calibration points, stability criteria, and temperature unit |
Data management, user management, calibration management, electrode management, method management are easy to function due to the smart operation system |
It has an Auto-hold feature that senses and locks the measurement endpoint |
Multiple reading feature is present that allows the reader to auto-read, timed-read and continuous-read |
It is delivered with a data capacity of up to 1000 sets |
Search, compare review, and calculating the data can be done through the data analysis feature |
Data can be transferred to PC or printer through USB or RS-232 communication |
pH |
It is comprised of automatic electrode diagnosis that has pH slope and offset display |
Auto-buffer recognition for various samples and has 1 to 6 points calibration |
User-defined buffer or buffer group can be selected for the desired sample |
Ion concentration |
Direct reading mode, Standard addition mode, sample addition mode, and GRAN mode are in-built along with Multi measurement method |
The user-defined method is maintained and it has over 10 methods are in-built that includes F-, Cl-, Br-, I-, NO3-, BF4-, NH4+, K+, Na+, Ca2+, Cu2+, Pb2+, Ag+ and so on |
The measurement unit can be Selected, that are ?g/L, mg/L, g/L, mmol/L, PX, etc 1 to 6 points calibration is processed |
Conductivity |
Settable parameters are present that include cell constant, reference temperature (5/10/15/18/20/ 25°C), temperature compensation coefficient, and TDS factor |
Auto sample recognition for various samples and has 1 to 5 points calibration |
Temperature constant type can be adjusted as none, linear, pure water |
DO |
Auto sample recognition for various samples and has 1 to 2 points calibration |
Manually and automatic barometer pressure compensation can be done according to preferring results |
This Multiparameter Analyzer can be taken to any remote areas to carry out the experiment even in the harsh conditions too. It measures various components at once of a single solution such as the dissolved oxygen in water and to maintain the oxygen level which are crucial in many processes such as wastewater treatment, drinking water supply and is necessary to support life and treatment developments. The device is helpful in sample analysis, environmental protection, cosmetic industry food processing etc.
