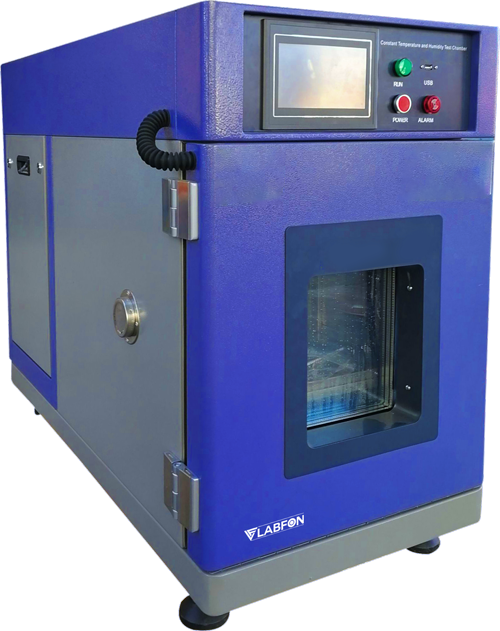

Climatic Temperature Test Chamber F-CTTC101 can bear the heating range of 2.0℃ to 4.0℃/min (non-linear) and natural cooling process. The internal and external material of the chamber is made up of SUS304 stainless steel. The parameters can be controlled using the 7-inch colour touch screen. PL fluorescent light for the illumination in the chamber. It uses an R404a refrigerant system with a temperature range of RT to 150℃ and a humidity range of 60% to 98%.
SUS304 stainless steel or electrostatic spray paint
Refrigeration System
no compressor
Refrigerant
R404a
Cooling method
Air-cooled
Controller
7-inch full-colour touch screen controller
Weight
130 kg
Voltage
220V or 380V
Current
10A
Inner size
350x400x350 mm
Customizable
External size
580x950x1100 mm
Involving two fold layer glass mentions a reasonable observable fact for test things whenever
Windows with anti-sweat radiator device to keep water from vapour build-up and water drops
The test chamber is intended for testing the ability of hotness perseverance, cold-perseverance, dryness-perseverance, and humidity perseverance
Rectangular glass seeing window, with lighting to keep brilliant inside the chamber
High-brilliance PL fluorescent light keeps the lighting inside the chamber
Used in the fields of industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
50mm or100mm Entrance hole for test wire, Dia. 50mm or 100mm
Sample Shelves, two layers
R232 or R485 communication Interface
50mm wiring hole 1 set
Humidified gauze 1 set
4GB U disk (with operating video) 1
Rack 2
