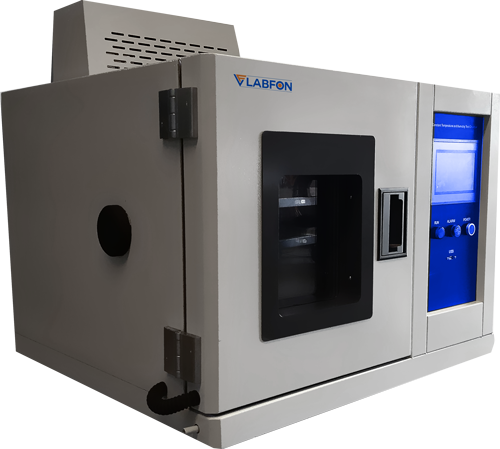

Climatic Temperature Test Chamber F-CTTC105
Home Test Chambers Climatic Temperature Test Chamber Climatic Temperature Test Chamber F-CTTC105
Climatic Temperature Test Chamber F-CTTC105
Climatic Temperature Test Chamber F-CTTC105 can bear the heating range of 2.0℃ to 4.0℃/min (non-linear) and a cooling range of 0.7℃ to 1.0℃/min (non-linear). The internal and external material of the chamber is made up of SUS304 stainless steel. The parameters can be controlled using the 7-inch colour touch screen. PL fluorescent light for the illumination in the chamber. It uses R404a or R23 refrigerant system and has a Temperature range of -60℃ to 150℃.
Temperature range | -60℃ to 150℃ |
Power | 4.5 kw |
Heating rate | 2.0℃ to 4.0℃/min (non-linear) |
Cooling rate | 0.7℃ to 1.0℃/min (non-linear) |
Humidity range | no humidity |
Inner material | SUS304 stainless steel |
External material | SUS304 stainless steel or electrostatic spray paint |
Refrigeration System | double-stage compressor |
Refrigerant | R404a and R23 |
Cooling method | Air-cooled |
Controller | 7-inch full-colour touch screen controller |
Weight | 170 kg |
Voltage | 220V or 380V |
Current | 20 A |
Inner size | 350x400x350 mm Customizable |
External size | 950x850x1450 mm |
The test chamber is intended for testing the ability of hotness perseverance, cold-perseverance, dryness-perseverance, and humidity perseverance |
Rectangular glass seeing window, with lighting to keep brilliant inside the chamber |
Involving two-fold layer glass mentions a reasonable observable fact for test things whenever |
Windows with anti-sweat radiator device to keep water from vapour build-up and water drops |
High-brilliance PL fluorescent light keeps the lighting inside the chamber |
Used in the fields of industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
