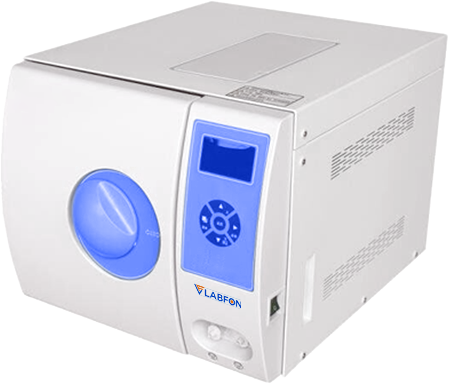

Medical Autoclave F-MA104

Home Autoclave Medical Autoclave Medical Autoclave F-MA104

Medical Autoclave F-MA104

Medical Autoclave F-MA104 is a table-top, Class B autoclave comprising vacuum drying offers sterilization temperature of 134°C with 0.22 MPa of pressure. Features stainless steel 304 chamber with mirror finish and a sealing cover, double pressure protection safety door lock and 23 L of capacity. Equipped with automatic computer control, LCD dynamic display for simple and convenient operating interface, liquid sensor for water level and temperature protection device. Built-in independent steam generator, safety pressure protection lock and automatic induction sterilizing cavity pressure, this device have open type top water tank. With manual timer of 0 to 90 min, user could set the time as per his requirement; could set 5 min or 10 min or 18 min. Optional USB function and U disk for storage and B&D test, helix test, and Vacuum test program, this device offers reset sterilization procedures, three pre-vacuum and vacuum deep drying function, sterilization and the adjustable drying time.

Capacity23 L
Sterilization Time0 to 90 min
Sterilization Temperature134°C
No. of Trays3 (stainless steel)
Dry ProcedureVacuum drying
Chamber Dimension ( Φ × D )247×450 mm
Overall Size ( L × W × H )790×590×540 mm
Input Power2000 W
Net Weight58 kg
Power Supply110 to 220 V/50 to 60 Hz
TypeB-type; Table-top
Test programsB&D test, Helix Test, and Vacuum test program
Door lockDouble pressure protection safety door lock
Steam generatorBuilt-in; independent
SensorLiquid sensor for water
Temperature protection deviceYes
Water tankOpen type
Material304 stainless steel with mirror finish
ControllerAutomatic computer control
DisplayLCD
Pressure0.22 MPa

Table-top, Class B autoclave comprising vacuum drying

Stainless steel 304 chamber with mirror finish

Sealing cover, double pressure protection safety door lock

Built-in independent steam generator, safety pressure protection lock

Safety pressure protection lock to avoid door opening during sterilization

Automatic computer control, LCD dynamic display for simple and convenient operating interface

Liquid sensor for water level and temperature protection device

Open type top water tank, for convenient water filling and cleaning

B&D test, Helix Test, and Vacuum test program

Offers reset sterilization procedures, three pre -vacuum and vacuum deep drying function, sterilization and the adjustable drying time

Optional USB function and U disk for data storage

High performance with reliability and safety

Medical autoclave is widely used in dental, medical, clinical, podiatry, veterinary, microbiology, biotechnology and life science research.
