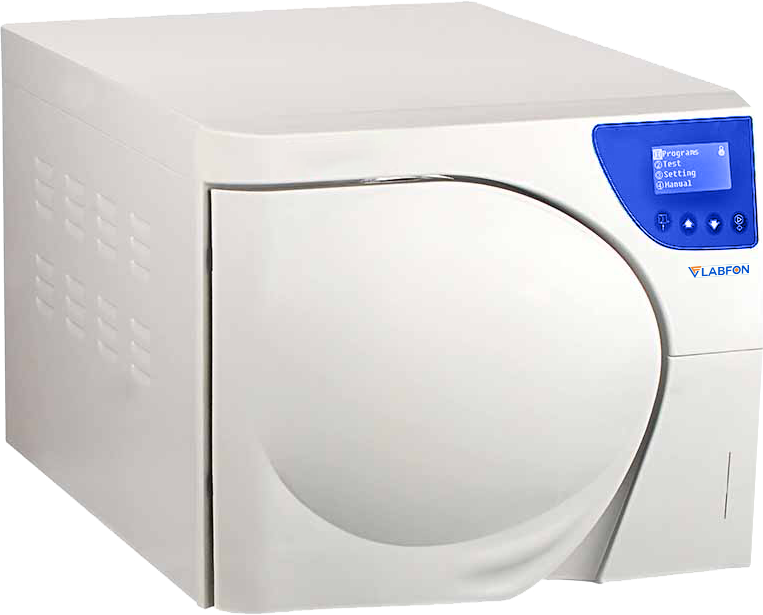

Medical Autoclave F-MA203

Home Autoclave Medical Autoclave Medical Autoclave F-MA203

Medical Autoclave F-MA203 is a class N fractionated automated autoclave. Equipped with automatic water feeding and draining system for effective sterilization. Automatic door lock safety mode makes the operation safe for the user. Low level water indication helps to keep a check on water level for safe operation. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure making a reliable and user friendly device.

Specification Features Applications Download Catalog

Capacity	23 L
Sterilization Time	4 - 20 mins
Sterilization Temperature	121 °C / 134 °C
No. of Trays	2
Chamber Dimension ( Φ × D )	250 × 490 mm
Overall Size ( L × W × H )	480 × 690 × 430 mm
Input Power	1500 W
Net Weight	36.5 kg
Gross Weight	45.5 kg
Power Supply	220 ± 10 %,110 V,50 / 60 Hz,20 A
Minimum Desk Size	480 × 500 mm

Digital LCD display to monitor working status and parameters

Working temperature : 134 °C

Automated drying function

Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa

Self-inflating leak proof chamber

Safe door lock system ensuring safety / protection during sterilization

Automatic power cut off with alarm with low water levels indication

Stainless steel sterilizing shelves

Medical autoclave is widely used in dental, medical, clinical, podiatry, veterinary, microbiology, biotechnology and life science research.

F-MA203
