Refrigerated Centrifuge F-RFC601

Home Centrifuges Refrigerated Centrifuge Refrigerated Centrifuge F-RFC601

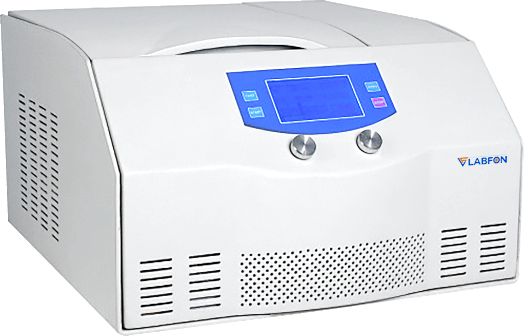

F-RFC601 is a microprocessor controlled table top type high speed refrigerated centrifuge with 20000 rpm speed and flexible axle driven rotor system. It is noiseless, pollution-free instrument with highly sophisticated design delivering high precision in results. It is equipped with brushless frequency motor, fluorine free compressor, automatic electric lid lock system and helps to separate crude samples that are heat labile or demands low temperature during their experimental protocol.

Specification Features Applications Rotor Selection Download Catalog

Max. Speed	21000 rpm
Max. RCF	26660 x g
Max. Capacity	6 x 100 ml
Temp. Range	-20℃ to 40℃
Temp. Accuracy	± 1℃
Speed Accuracy	± 50 rpm
Time Range	1 - 99 hr. 59 min
Noise	≤ 58 dB
Power Supply	AC 110 - 220 V / 50 - 60 Hz / 10 A
Dimension (H x W x D)	380 x 610 x 570 mm
Packaged Dimension (H x W x D)	830 x 650 x 500 mm
Net Weight	82 kg
Gross Weight	92 kg

Microprocessor controlled system

Flexible axle driven rotor system that ensures smooth functioning

3 tier protection steel covering to ensure safety

Digital display that indicates all running parameters

Automatic electric locking system that ensures protection against over speed, over temperature and imbalance

Provision to change running parameters

30 different programs can be stored in the memory

10 different acceleration and deceleration speed available

Rotor is connected to spindle by specialized taper sleeve

Wide range of rotors that are compatible with the instrument are available

Adapters can be designed as per the experimental requirement

Safe, reliable and efficient

Pollution free

It is extensively used for protein precipitation, RNA extraction in the field of medicine, life science, agriculture science etc.

F-RFC601

Rotor Name	Max. Speed (rpm)	Max. Capacity (ml)	Max. RCF (x g)
Angle Rotor 01	21000	12×1.5/2ml	30910
Angle Rotor 02	15000	40×0.5ml	22920
Angle Rotor 03	17000	24×1.5/2ml	26460
Angle Rotor 04	13500	30×1.5/2ml	19340
Angle Rotor 05	16000	16×5ml	22020
Angle Rotor 06	14000	12×7ml	21380
Angle Rotor 07	10000	12×15ml	11840
Angle Rotor 08	15000	12×10ml	22680
Angle Rotor 09	15000	8×20ml	22680
Angle Rotor 10	14000	6×30ml	19060
Angle Rotor 11	12000	6×50ml	16050
Angle Rotor 12	12000	6×70ml	15570
Angle Rotor 13	12000	4×100ml	14850
Angle Rotor 14	12000	6×100ml	14850
Angle Rotor 15	16000	6×10ml	21500
Angle Rotor 16	18000	30×0.5ml	26660
Angle Rotor 17	13500	48×1.5/2ml	17930
Microplate 01	4000	2×3×48 well	2300
