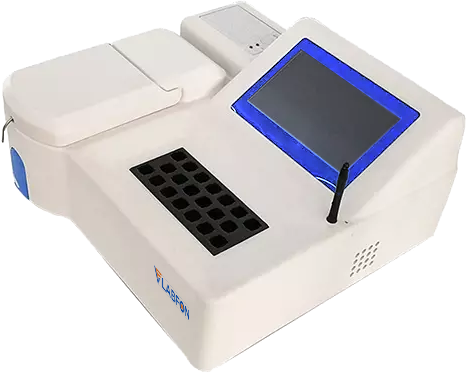

Labfon Semi-Automated Chemistry Analyzer F-SACA101 is a compact and table-top unit comprised with quartz reading cuvette, offers filter wavelength of 304 nm, 405 nm, 450 nm, 510 nm, 546 nm, 578 nm, 630 nm and 2 open filter positions. Designed with touch screen display, built-in thermal printer, and halogen illumination, features 0 to 3.500 OD of measuring range with <0.005 OD of drift. Equipped with QC function and 20 incubating positions, offers RT, 25°C, 30°C and 37°C of incubator temperature with large memory for data storage. With one button operation and assays for end point, kinetic, fixed time, etc., offers real time graph display and printing, and supports RS232 and USB interface for convenient data processing.
Measuring Range: 0 to 3.500 OD
Method: End Point, Fixed Time, Rate etc.
Photometric linearity: ±2% (0 to 2.500 OD)
Photometric accuracy: ±1% (0 to 2.500 OD)
Quartz Cuvette; Both Cell and Direct reading cuvette
Incubating positions
20 incubation positions
Quality Control
QC function with storage, display and printing
Display
Touch Screen
Storage
144 test programs, 5600 test results
Printer
Built-in thermal printer
Interface
RS-232, USB
Power Supply
AC 110/220 V ± 50/60 Hz
Dimension (W×D×H)
400×380×200 mm
Packaging Dimension (W×D×H)
500×530×350 mm
Net Weight
10 kg
Gross Weight
12 kg
A compact and table-top unit comprised with quartz reading cuvette
Filter wavelength of 304 nm, 405 nm, 450 nm, 510 nm, 546 nm, 578 nm, 630 nm and 2 open filter positions
Touch screen display, convenient setting and monitoring of different parameters
Built-in thermal printer, can print QC chart and real time graph
Halogen lamp as illumination source, long life span
0 to 3.500 OD of measuring range with <0.005 OD of drift
QC function with QC chart storage, display and printing
20 incubating positions with RT, 25°C, 30°C and 37°C of incubator temperature
Large memory for data storage, up to 144 test programs and 5600 testing results
With one button operation, ensure easy and accurate operation
Assays for end point, kinetic, fixed time, etc.
Real time graph display and printing, facilitate experiments
Supports RS232 and USB interface for convenient data processing
High-efficient, stable and reliable unit for stable and reliable results
Labfon Semi-Automated Chemistry Analyzer is used to perform routine biochemistry, hormonal assay, electrolytes, therapeutic drugs, and drug-enzyme investigations etc. across clinical, research, education, veterinary, toxicology, and pharmaceutical laboratory etc.
