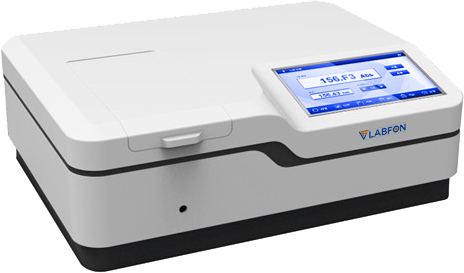

Touch Screen Single Beam UV-Vis Spectrophotometer F-TSBS103

Home Spectrophotometer Single Beam Touch Screen Spectrophotometer Touch Screen Single Beam UV-Vis Spectrophotometer F-TSBS103

Touch Screen Single Beam UV-Vis Spectrophotometer F-TSBS103 is a single beam spectrophotometer with 190 to 1100 nm wavelength range, Deuterium Lamp (UV light) and Tungsten lamp (visible light) as a light source. Designed with colored Touch LCD screen, easy to use finger touch operations. Advanced ARM system and long optical system ensures precision measurements and good stability.

Specification Features Applications Standard Accessories Optional Accessories Download Catalog

Optical system	Single beam, grating 1200 lines/ mm
Wavelength range	190 to 1100 nm
Spectral bandwidth	0.5/ 1/ 2/ 4/ 5 nm
Wavelength accuracy	± 0.3 nm
Wavelength repeatability	≤ 0.1 nm
Photometric accuracy	± 0.3 % T ( 0 to 100% T)
Photometric repeatability	± 0.1 % T ( 0 to 100% T)
Photometric range	0 to 200 % T, 3 to 3 A
Stray light	≤ 0.03 % T
Stability	± 0.0005 A/ h @ 500 nm
Baseline flatness	± 0.001 A
Work mode	T, A, C, E
Scanning speed	Fast, mid, slow
Wavelength setting	Automatic
Display	10.1 inch color Touch LCD display
Light source	Imported deuterium and tungsten lamp
Detector	Imported silicon photodiode
Output	USB/ RS 232
Power	AC 220 V/ 50 Hz Or AC110 V/ 60 Hz
Dimension	590 × 475 × 250 nm
Packaging dimension	770 × 630 × 340 nm
Ambient temperature	10 to 35°C
Relative Humidity	≤ 85%
Net weight	20 kg
Gross weight	26 kg

10.1 inch colored Touch LCD display

190 to 1100 nm Wide Wavelength range

Built-in 1GB memory storage for tests data and working curves

Fixed 2 position cuvette holder, one for sample other for reference

21 CFR part 11 compliant software

Performs photometric, quantitative, kinetic, spectrum scan, multi-wavelength measurements

Switches lamps without optics debugging, for easy replacement

USB port for data transfer to PC and other devices for further analysis, processing

Available with optional Auto 8 Cell holder

Used in biochemistry, biotechnology, microbiology, chemistry, pharmacy, water testing, environmental and food science industries for Quality & Research analysis.

F-TSBS103

Accessories No.	Name
1	Glass cuvettes 5 to 100 mm
2	Quartz cuvettes 5 to 100 mm
3	Manual 4- cell holder (10 to 100 mm)
4	Auto 8- cell holder
5	Tungsten lamp
6	Deuterium lamp
7	21 CFR part 11 compliant software

Accessories No.	Name	Qty.
1	Glass cuvette 10 mm	1 set of 4
2	Quartz cuvette 10 mm	1 set of 2
3	Power cable	1
4	PC software	1
