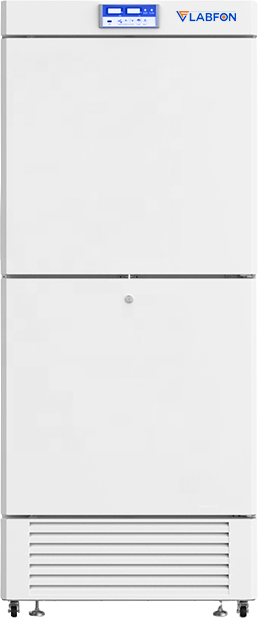

-40°C Upright Freezer F-UFR221 is designed with two chambers and compressors, offers direct cooling method and manual defrost mode. Features 450 L capacity and -40°C of cooling performance with microprocessor-controlled system for -20 to -40°C of temperature range. Designed with powder coated material exterior and sprayed aluminum plate interior, has R290 refrigerant, CFC-free polyurethane foam technology and thick insulation of 80 mm. Equipped with digital display, advanced alarm system and backup battery, is provided with 6 shelves for each chamber along with RS485 interface and remote alarm contact.
High/Low temperature, High ambient temperature, Power failure, Low battery, Sensor failure, USB data−log failure, communication error, Door ajar
External Material
Powder coated material
Internal Material
Aluminum plate with spraying
Insulation thickness
80 mm
Shelves
6×2 (ABS)
Casters
4 (2 caster with brake)
Door lock with Key
Yes
Doors
2
Access Port
2 pcs. Φ25 mm
Data Logging/Interval/Recording Time
USB/Record every 10 minute / 2 years
Backup Battery
Yes
Rated Current
4.5 A
Power Supply
220 to 240 V 50 Hz
Internal Dimension (W×D×H)
650×570×627 mm (×2)
External Dimension (W×D×H)
810×735×1960 mm
Packaging Dimension (W×D×H)
895×820×2127 mm
Net Weight
144 kg
Gross Weight
156 kg
Two chambers with independent compressors, precise and separate temperature control
Direct cooling method and manual defrost mode, efficient and stable operation
450 L capacity with -40°C of cooling performance, constant and even temperature
Microprocessor-controlled system with -20 to -40°C of temperature range
Powder coated material exterior and sprayed aluminum plate interior, low maintenance
R290 refrigerant, efficient and environment friendly Freon-free refrigerant
CFC-free polyurethane foam technology and thick insulation of 80 mm
Digital display, convenient observation and setting of operative parameters
Advanced alarm system, ensures safe and reliable storage operation
6 shelves for each chamber, efficient and organized sample storage
Supports RS485 interface and remote alarm contact, stable and reliable operation
-40°C Upright Freezer is used for scientific research, cryogenic test on special materials, low temperature resistance test on biological materials, vaccines, biological products and military products, etc. across research institutions, the electronic industry, the chemical industry, hospitals, the health,& disease prevention system, laboratories in colleges & universities, military enterprises, etc.
