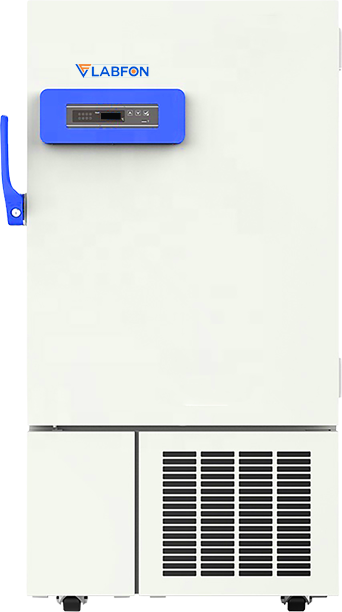

-86 °C Ultra Low Temperature Upright Freezer F-UFR321
-86 °C Ultra Low Temperature Upright Freezer F-UFR321 is an upright type freezer comes with 218 L capacity and offers temperature range -40 to -86˚C and -86˚C cooling performance. Features with microprocessor controlled system with interior digital temperature display to show various parameters simultaneously. Designed with direct cooling system and manual defrost mode, equipped with eco- friendly refrigerant Mixture gas, Built-in high-precision microcomputer temperature control system and platinum resistor temperature sensors. It offers high or low temperature alarm, Door open alarm and Keyboard lock, password protection function to prevent arbitrary adjustment of operating parameters.
High and low temperature, high ambient temperature, Power failure, Low battery, Sensor failure, Condenser overheating, Door ajar, Built−in datalogger USB failure, Main board communication error
External Material
Steel plates with spraying
Internal Material
Galvanized steel sheet
Insulation thickness
155 mm
Shelves
1 (stainless steel)
Casters
4
Door lock with Key
Yes
Keypad Lock
Yes
Access Port
1pcs
Data Logging/Interval/Recording Time
USB/Record every 10 minute / 2 years
Backup Battery
Yes
Rated power
1200 W
Input power
1300 W
Rated Current
5.96 A
Power consumption
8.63 kWh/24h
Power Supply
220 to 240 V /50 Hz
Internal Dimension (W×D×H)
470 × 580 × 767 mm
External Dimension (W×D×H)
862 × 976 × 1555 mm
Packaging Dimension (W×D×H)
983 × 1073 × 1741 mm
Net Weight
218 kg
Gross Weight
272 kg
High-precision microcomputer temperature control system and platinum resistor temperature sensors
Temperature ranges from -40 to -86?C with precise temperature control
Forced air circulation system with powerful EBM fan, energy-saving and highly efficient
Two-layer heat insulating foamed door with airbag-typed outer seal and rotating handle
Universal wheels easy for movement and fixation
Highly effective condenser and expansive evaporator to provide quick freezing
Upright type, Exterior and inside body all made from stainless steel
Design with safety door lock, ensure sample storage is more secure
The perfect audible & visual alarm system high/low temperature, sensor failure, door open, and power failure etc.
Upright Freezers is used in scientific research, cryogenic test on special materials, blood plasma cryopreservation, low temperature resistance test on biological materials, vaccines, biological products and military products, etc. and Suitable for use in research institutions, the electronic industry, the chemical industry, hospitals, the health & disease prevention system, laboratories in colleges & universities, military enterprises, etc.
