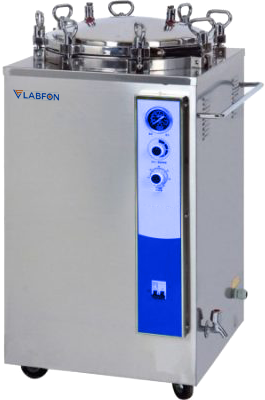

Vertical Laboratory Autoclave F-VLA101
Vertical Laboratory Autoclave F-VLA101 is top loading vertical pressure steam sterilizer with chamber capacity of 35 L, working sterilization temperature and pressure of 134°C and 0.22 MPa respectively. Designed with four wheels (castors) at base for easy movement of the unit. The standard 02 pcs of stainless steel baskets to keep the sterilization material load. The chamber is constructed of long lasting 304 grade stainless steel with superior corrosion resistance property. The Vertical Laboratory Autoclave units is equipped with dual scale numerical pressure gauge to indicate temperature and pressure of the system. It works on electric heating or direct heating by immersing copper tubes of heating elements
| Capacity | 35 L |
| Chamber Volume | 318×450 mm |
| Power Consumption | 2.5 kW |
| Working Sterilization Temperature | 134°C |
| Working Sterilization Pressure | 0.22 MPa |
| Maximum Working Pressure | 0.23 MPa |
| Time Range | 0 to 60 mins |
| Sterilization Temperature Range | 105 to 134°C |
| Heat Average | ≤ ± 1°C |
| Power supply | AC 220 V, 50 Hz |
| Dimension | 570×550×970 mm |
| Net weight | 42 kg |
| Gross weight | 56 kg |
Top loading sterilizing unit, whole body constructed of Stainless steel |
Door design (with lock) adopted with silicone rubber seal to prevent steam leakage |
Automatically shut off with beep alarm after sterilization |
Manual water loading system |
Casters for easy movement of whole unit |
Double scale indication pressure gauge |
Provision to set sterilization time and temperature with the help of knobs |
Indicator light to indicate working status of the sterilization process, provide auto protection against over temperature, over pressure |
Safe, reliable and user-friendly operation mode |
Two stainless steel sterilizing baskets for loading material for sterilization |
Equipped with safety valve, electronic circuit safety system, emergency exhaust switch |
Complies with international standards |
Vertical Laboratory Autoclave used in pharmaceutical industry, medicine and health care industry, Biotechnology, Microbiology for effective sterilization of glassware’s, biological materials, culture media and others.
