Vertical Laboratory Autoclave F-VLA204

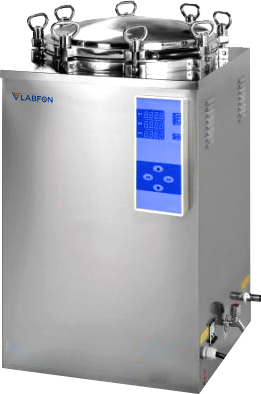

Vertical Laboratory Autoclave F-VLA204 is top loading vertical pressure steam sterilizer with chamber capacity of 100 L, working sterilization temperature and pressure of 134°C and 0.22 MPa respectively. Designed with digital display of working status, with touch keypad and double stainless steel baskets to keep the sterilization material load. Material used stainless high-alloy steel body structure. Auto discharge the cool air, and steam discharging automatically after sterilization. It is used in pharmaceutical industry, medicine and health care industry.
Capacity | 100 L |
Chamber Volume | 440 × 650 mm |
Power Consumption | 4.5 kW |
Display | Digital Display |
Working Sterilization Temperature | 134℃ |
Working Sterilization Pressure | 0.22 MPa |
Maximum Working Pressure | 0.23 MPa |
Time Range | 0 to 99 min or 0 to 99 hour 59 min |
Sterilization Temperature Range | 105 to 134℃ |
Heat Average | ≤± 1℃ |
Power supply | AC 220 V, 50 Hz |
Dimension | 680 × 650 × 1220 mm |
Net weight | 85 kg |
Gross weight | 105 kg |
Material used for body structure is high-alloy stainless steel |
Designed with digital display indicates working status, touch keypad control panel |
Over temperature & over pressure auto-protection |
Sterilization Temperature ranges from 105 to 134? |
Designed with auto discharge the cool air, and steam discharging automatically after sterilization |
Automatically shut off with beep alarm after sterilization |
Dual stainless steel baskets as standard accessory |
Equipped with movable casters for easy movement |
Easy to operate, safe and reliable |
Vertical Laboratory Autoclave used in pharmaceutical industry, medicine and health care industry, Biotechnology, Microbiology for effective sterilization of glassware’s, biological materials, culture media and others.
