-86 °C Ultra Low Temperature Upright Freezer F-UFR303

Home Laboratory Freezers Upright Freezers -86 °C Ultra Low Temperature Upright Freezer F-UFR303

www.labfon.com

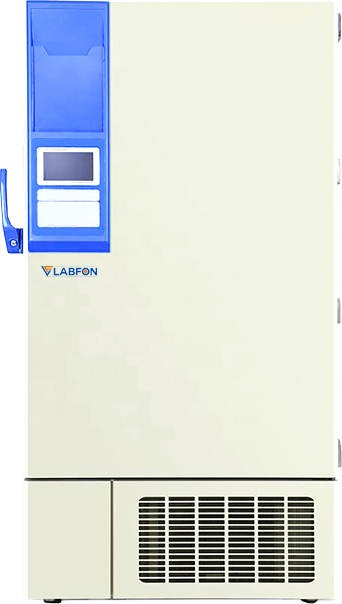

-86 °C Ultra Low Temperature Upright Freezer F-UFR303

Description :

-86 °C Ultra Low Temperature Upright Freezer F-UFR303 is an upright type freezer comes with 678 L capacity and offers temperature range -40 to -86˚C and -86˚C cooling performance. Features with microprocessor controlled system with interior 7 inches LED touch Screen temperature display to show various parameters simultaneously. Designed with direct cooling system and manual defrost mode, equipped with eco- friendly refrigerant Mixture gas, Built-in high-precision microcomputer temperature control system and platinum resistor temperature sensors. It offers high or low temperature alarm, Door open alarm and Keyboard lock, password protection function to prevent arbitrary adjustment of operating parameters.

Specifications :

Cabinet Type	Upright
Capacity	678 L
Temperature Range	−40 to −86 ℃
Ambient Temperature	16 to 32 ℃
Cooling Performance	−86 ℃
Cooling Method	Direct cooling
Defrost Mode	Manual
Refrigerant	Mixture gas
Climate Class	N
Controller	Microprocessor
Display	Touch screen
Compressor	1 pcs
Alarm System	High and low temperature, high ambient temperature
External Material	High quality steel plates with spraying
Internal Material	Galvanized steel sheet
Insulation thickness	130 mm
Shelves	3 (stainless steel)
Casters	4 +(2 leveling feet)
Door lock with Key	Yes
Keypad Lock	Yes
Access Port	3 pcs. Φ25 mm
Data Logging/Interval/Recording Time	USB/Record every 1 minute / 365 days
Backup Battery	Yes
System	Sensor error, Main board communication error, Built−in data logger USB failure， Condenser cooling failure, Door ajar, Samples out of date， System failure
Electrical	Power failure, Low battery
Rated power	1680 W
Input power	2000 W
Rated Current	9.1 A
Power consumption	15 KWh/24h
Power Supply	230 ±10% V /50 Hz
Internal Dimension (W×D×H)	750 × 696 × 1286 mm
External Dimension (W×D×H)	1090 × 1025 × 1965 mm
Packaging Dimension (W×D×H)	1203 × 1155 × 2171 mm
Net Weight	330 kg
Gross Weight	382 kg

Features :

Adopts 7 inches LED touch screen display control system
Designed with high-precision microcomputer temperature control system and platinum resistor temperature sensors ensure more precise temperature control
Temperature ranges from -40 to -86?C
EBM fan are powerful, energy-saving and highly efficient
Six sides of the cabinet are made from high-performance vacuum insulation material, improving thermal insulation performance to a large extent
The rotating handle facilitates door opening
Universal wheels easy for movement and fixation
Two-layer heat insulating foamed door with airbag-typed outer seal and the insulation
Forced air circulation system
Highly effective condenser and expansive evaporator to provide quick freezing
Upright type, Exterior and inside body all made from stainless steel
Design with safety door lock, ensure sample storage is more secure
The perfect audible & visual alarm system high/low temperature, sensor failure, door open, and power failure etc

Applications:

Upright Freezers is used in scientific research, cryogenic test on special materials, blood plasma cryopreservation, low temperature resistance test on biological materials, vaccines, biological products and military products, etc. and Suitable for use in research institutions, the electronic industry, the chemical industry, hospitals, the health & disease prevention system, laboratories in colleges & universities, military enterprises, etc.

Optional Accessories:

Accessories no.	Name
1	Chart recorder
2	CO2 backup system
3	Printer
4	Remote alarm contact
